TP Dust Collector

1. Introduction to Advanced Industrial Air Pollution Control

In the modern industrial landscape, environmental sustainability and operational efficiency are deeply interconnected. As regulatory standards tighten globally, industries require advanced solutions to manage air emissions effectively. Changzhou Thinks Environmental Technology Co., Ltd. stands at the forefront of this sector, delivering world-class industrial air pollution control systems.

Industrial processes like metal casting, chemical production, and steel manufacturing generate massive volumes of airborne particulates. Without robust filtration systems, these pollutants threaten workplace safety, damage production equipment, and harm the environment. Investing in high-efficiency dust collection technology is no longer just a regulatory obligation; it is a critical strategy for sustainable business growth and operational reliability.

2. Comprehensive Guide to the TP Dust Collector Technology

The TP Dust Collector by Changzhou Thinks Environmental Technology Co., Ltd. is engineered to meet the most demanding air filtration needs, particularly those involving sticky, heavy, and extremely fine dust particles. Unlike conventional filtration units that struggle with filter clogging and frequent downtime, the TP Dust Collector utilizes a sophisticated design framework to ensure continuous, high-capacity performance.

2.1 The Downflow Principle and Side-Insert Flat Bag Design

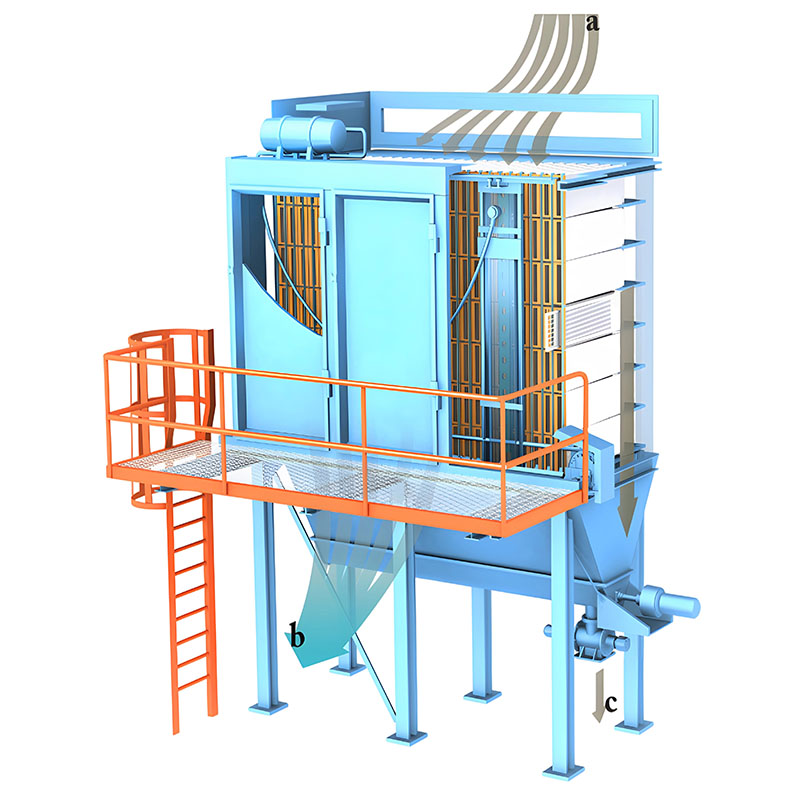

The fundamental engineering breakthrough of the TP Dust Collector lies in its downflow airflow principle. In traditional dust collectors, the contaminated air enters from the bottom, fighting against gravity as the dust attempts to settle. The TP Dust Collector reverses this process. Contaminated air enters from the upper portion of the unit and moves downward. This natural downward flow assists gravity, pulling the separated dust particles toward the collection hopper at the bottom.

Complementing this principle is the side-insert flat bag filter design. Flat bags provide a significantly higher filtration surface area within a compact spatial envelope compared to traditional round filter bags. The side-insert mechanism allows for maintenance and replacement from the clean-air side of the system, greatly improving maintenance safety and reducing system downtime during servicing.

2.2 Advanced Offline Cleaning System with Movable Car

Sticky and ultra-fine dust concentrations present a severe risk of blinding or clogging filters. The TP Dust Collector addresses this via a proprietary offline compressed air cleaning system.

During the cleaning cycle, individual filter compartments are temporarily isolated from the main airflow. A specialized movable car equipped with precision cleaning nozzles travels across the isolated section, delivering targeted, high-pressure pulses of compressed air. Because the compartment is offline, there is no counter-current airflow resisting the pulse. This allows the sticky dust cake to release effortlessly from the flat bags and fall directly into the hopper, preventing the common issue of dust re-entrainment where loosened dust immediately re-settles on adjacent active filters.

3. Technical Parameters and Performance Matrix

To demonstrate the capabilities and appropriate application scaling of the TP Dust Collector, the table below outlines the core technical specifications and performance benchmarks managed by Changzhou Thinks Environmental Technology Co., Ltd.

4. Global Service Advantages of Changzhou Thinks Environmental Technology Co., Ltd.

Choosing Changzhou Thinks Environmental Technology Co., Ltd. means partnering with an organization dedicated to engineering excellence, global execution, and lifecycle support. Our service advantages set us apart as a premier system supplier in the international market.

• Independent Research and Development: We do not rely on generic, off-the-shelf components. All our core products, including the specialized mechanisms within the TP Dust Collector, are developed independently by our in-house engineering teams to guarantee premium quality control.
• Tailored Engineering Solutions: Every industrial facility has unique spatial, chemical, and airflow requirements. We leverage our technical expertise to design and adapt our modular systems to fit perfectly within your existing infrastructure.
• Global Export and Logistics Capabilities: Our reach spans across North America, Europe, Africa, Southeast Asia, and beyond. We possess the logistics expertise and regulatory knowledge required to deliver and install high-capacity environmental systems anywhere in the world.
• Comprehensive Industry Cross-Over: Our experience is diversified. We routinely service demanding sectors such as metal casting, non-ferrous metallurgy, chemical processing, steel manufacturing, packaging, industrial printing, pharmaceuticals, and the rapidly growing new energy sector.
• End-to-End Lifecycle Support: From initial site assessments and aerodynamic modeling to global installation, commissioning, and long-term spare parts supply, we support your environmental compliance journey every step of the way.

5. Core Industrial Applications for the TP Dust Collector

The high capacity range of 30,000 to 500,000 cubic meters per hour positions the TP Dust Collector as an ideal asset for large-scale industrial operations facing complex dust profiles.

5.1 Casting and Non-Ferrous Metals

Foundries and metal processing plants generate a mixture of heavy slag dust, fine metal oxides, and sticky binding agents used in sand molding. The offline cleaning car of the TP Dust Collector prevents these binding agents from creating a permanent crust on the filter media, maintaining a stable pressure drop across the system.

5.2 Chemical and Pharmaceutical Manufacturing

Chemical processing often involves fine, hygroscopic powders that readily absorb moisture from the air, turning into a sticky paste. The downflow design ensures that these challenging materials are continuously driven downward into the hopper before they can agglomerate on the filter surfaces.

5.3 Steel and New Energy Sectors

From raw material handling in steel mills to the precise processing of graphite and lithium compounds for the new energy battery sector, ultra-fine dust containment is critical. The flat bag design offers the high-efficiency filtration required to capture sub-micron particles, ensuring clean air exhaust that meets the most stringent international environmental regulations.

6. Frequently Asked Questions

6.1 What makes the TP Dust Collector superior for handling sticky dust compared to standard dust collectors

Standard dust collectors use online cleaning, meaning the filters are pulsed while air is still being drawn through them. This causes sticky dust to instantly re-settle onto the filter. The TP Dust Collector isolates the filter section offline, allowing the movable car and pulse nozzles to completely dislodge sticky dust without any opposing airflow resistance.

6.2 How does the side-insert flat bag design reduce operational maintenance costs

Flat bags offer a high filtration surface area relative to their size, which allows the entire machine footprint to remain compact. The side-insert configuration allows maintenance technicians to access and change the filters quickly from the clean-air side, minimizing downtime, eliminating the need to enter confined dirty spaces, and lowering labor costs.

6.3 Can the TP Dust Collector handle variable airflow volumes within its specified capacity range

Yes, the modular design engineered by Changzhou Thinks Environmental Technology Co., Ltd. allows the system to operate efficiently anywhere within the range of 30,000 to 500,000 cubic meters per hour. The system controls can adjust the movement of the cleaning car and pulse frequency based on real-time pressure differential and airflow demands.

6.4 What industries derive the greatest benefit from this specific dust collection system

The system is highly recommended for industries dealing with high-concentration fine particulate matter or sticky byproducts. This includes metal casting, non-ferrous metallurgy, chemical production, industrial printing, packaging, pharmaceuticals, steel production, and new energy material manufacturing.

6.5 How does Changzhou Thinks Environmental Technology Co., Ltd. support international clients after purchase

We provide full global service coverage. This includes remote engineering consultations, supervised installation and commissioning, comprehensive operator training, and an efficient global supply chain for replacement flat bags and mechanical components to ensure your system maintains peak performance.
