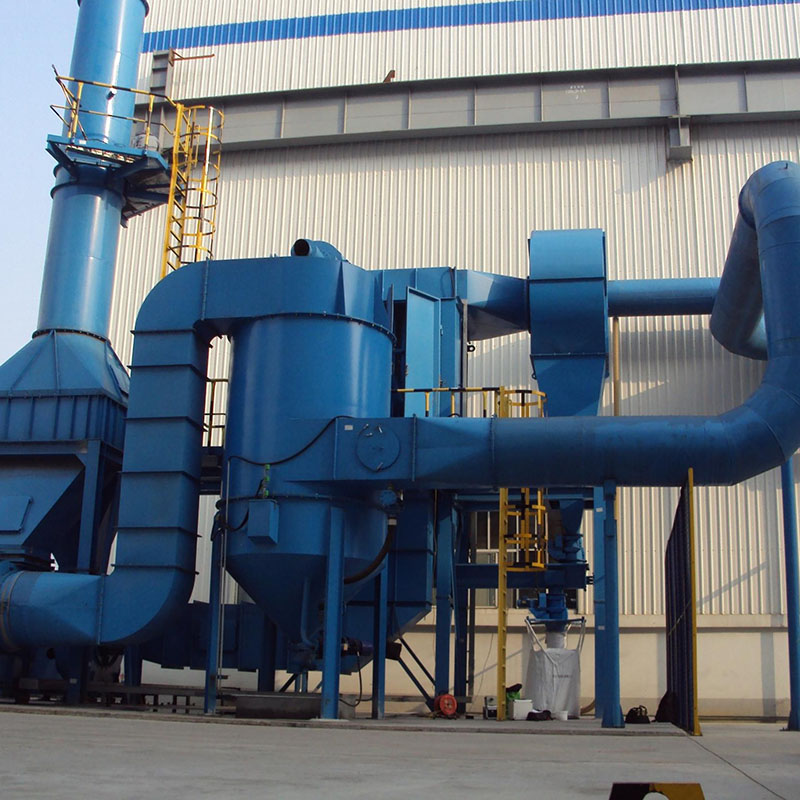

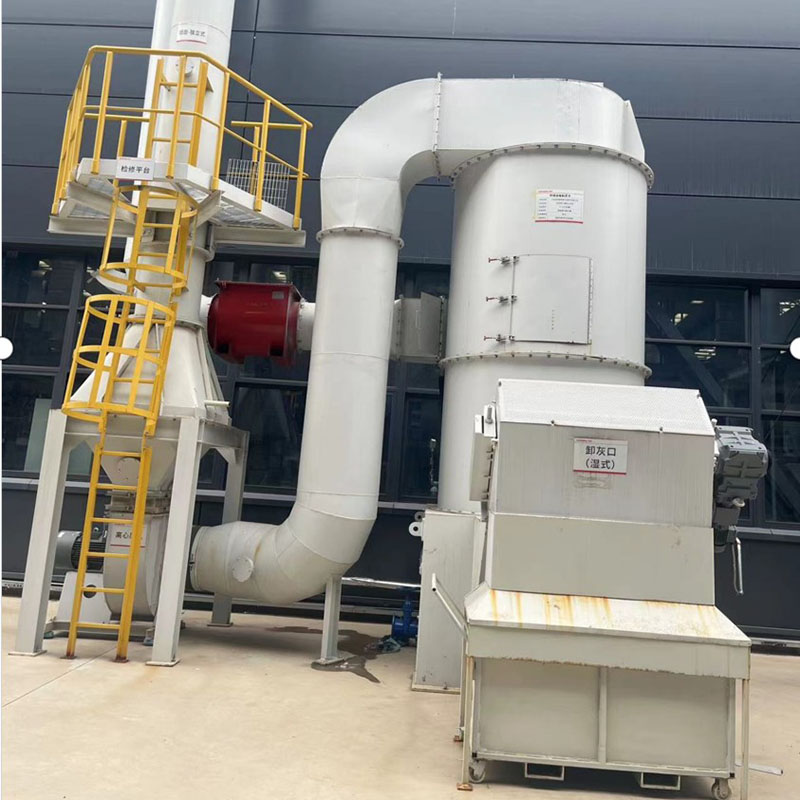

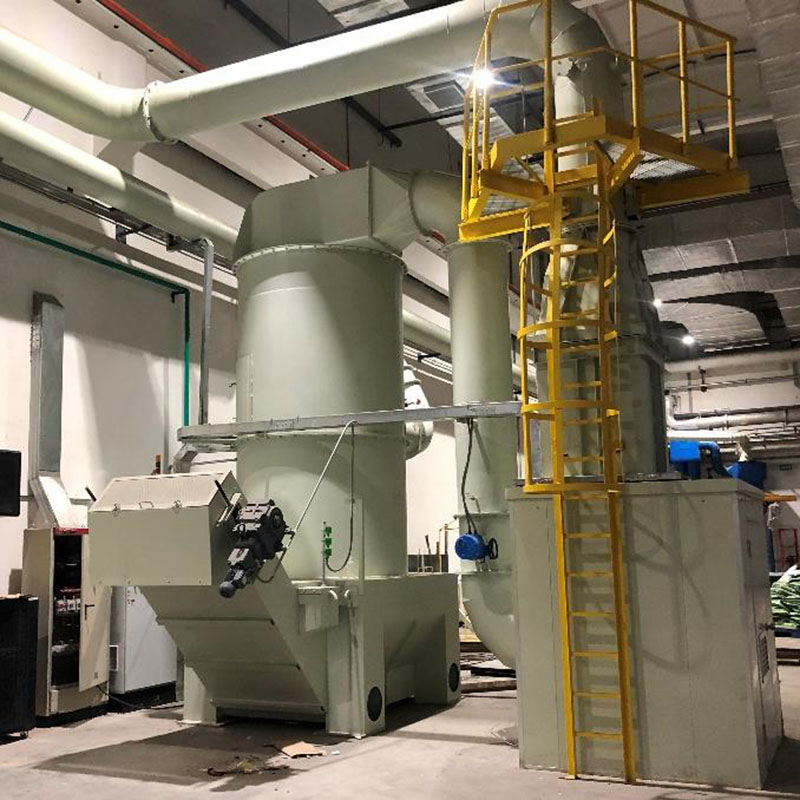

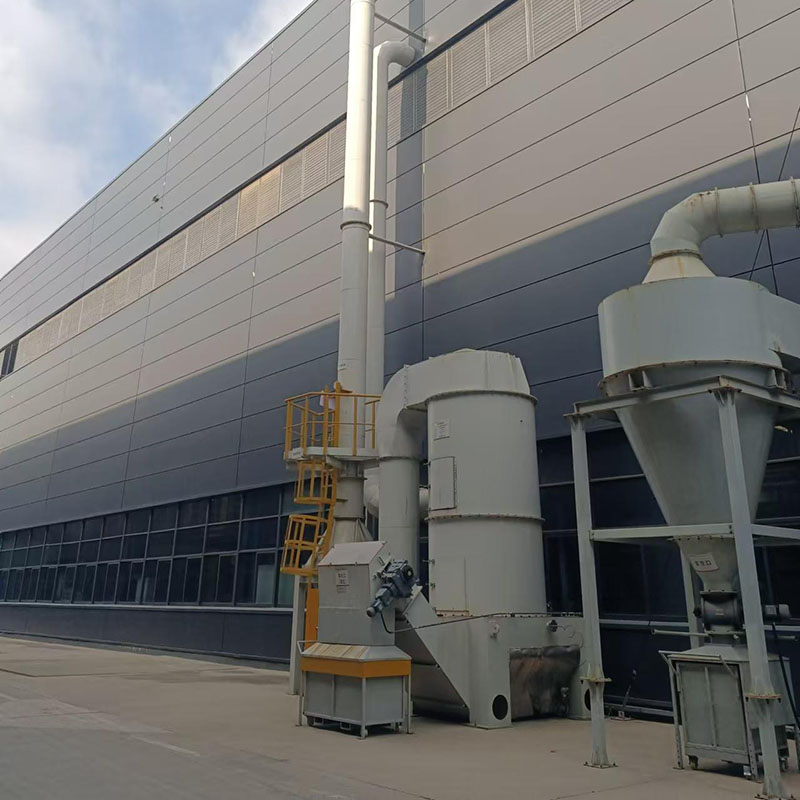

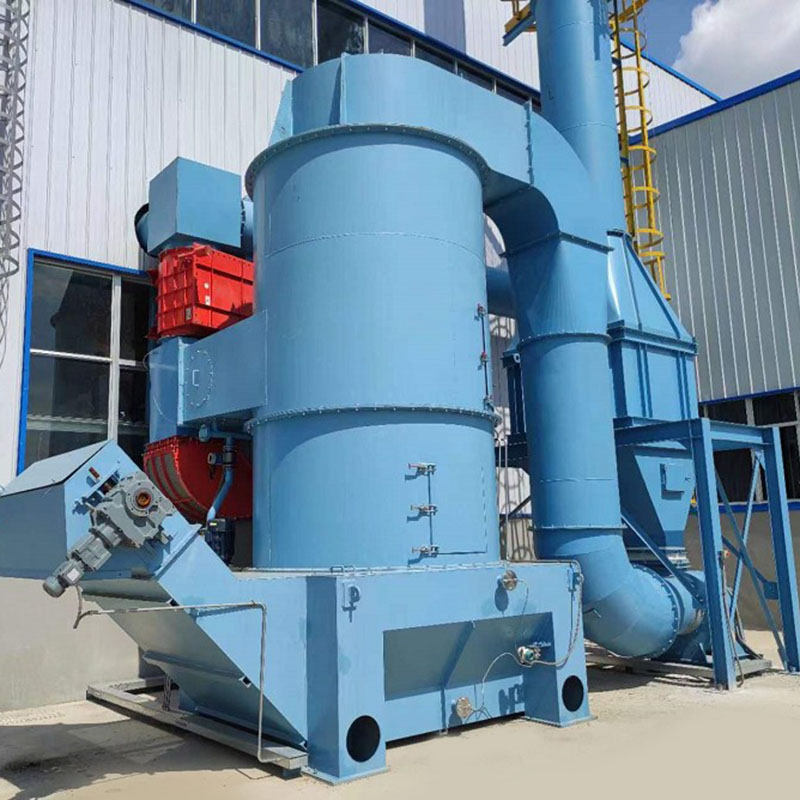

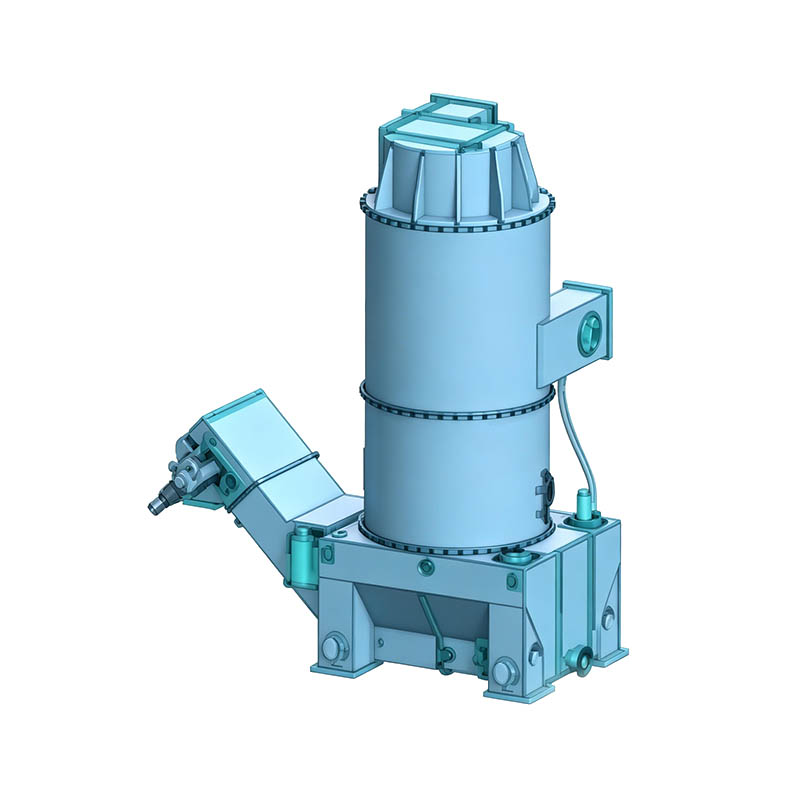

TVC Series Explosion-Proof Wet Dust Collector

1. Understanding Explosion-Proof Wet Dust Collection Technology

Industrial manufacturing processes often generate fine particulate matter that poses severe safety and health risks. Among these, combustible and explosive dusts represent some of the most critical hazards in modern production facilities. The TVC Series Explosion-Proof Wet Dust Collector by Changzhou Thinks Environmental Technology Co., Ltd. is engineered specifically to mitigate these risks by using liquid media to capture and neutralize dangerous airborne particles before they can trigger an incident.

Unlike traditional dry filtration systems that rely on fabric bags or cartridges, a wet dust collector introduces the dust-laden gas stream into a liquid scrubbing environment, typically utilizing water. When flammable or high-temperature dust particles enter the system, they are immediately brought into contact with the liquid. This process thoroughly wets the particles, increasing their mass and rendering them inert. By converting potentially explosive dry dust into a stable wet sludge, the system eliminates the primary conditions required for dust deflagration, such as a suspended dust cloud and a dry ignition environment.

This technology is particularly vital for handling reactive metallic dusts, such as aluminum, magnesium, and titanium, as well as organic dusts found in chemical and pharmaceutical processing. Dry collection of these materials carries an inherent risk of static electricity accumulation or spark generation, which can lead to catastrophic explosions. The wet collection methodology provides an inherently safer working environment by ensuring that every captured particle is completely saturated and cooled.

2. Key Technical Advantages of the TVC Series Design

The TVC Series Explosion-Proof Wet Dust Collector incorporates several advanced engineering features developed by Changzhou Thinks Environmental Technology Co., Ltd. to ensure continuous operation, high efficiency, and minimal manual intervention.

2.1 Continuous Online Sludge Discharge via Scraper Groove

A common challenge with traditional wet scrubbers is the accumulation of heavy sludge at the bottom of the collection tank, requiring frequent manual cleanouts and system downtime. The TVC Series addresses this issue through an integrated scraper groove design. This mechanism automatically and continuously removes the settled pollutants from the bottom of the tank while the system remains completely online. This ensures consistent water volume and optimal aerodynamic performance without interrupting plant production schedules.

2.2 Filter-Free Operation and Low Maintenance Cost

By utilizing liquid-phase separation instead of physical barrier filters, the TVC Series operates entirely without filter bags, cartridges, or envelopes. In high-temperature or sticky dust applications, standard filters plug rapidly, leading to high pressure drops and frequent, expensive replacement cycles. The filter-free design of this equipment significantly reduces ongoing maintenance costs, eliminates filter disposal expenses, and maintains a stable operational pressure drop over long periods of service.

2.3 Intelligent Safety and Automation Monitoring

Safety is the core foundation of the TVC Series design philosophy. The equipment features a fully automatic control system integrated with comprehensive sensor networks. Real-time monitoring tracks critical operational variables, including liquid levels and airflow rates. If the system detects an abnormality, such as a drop in water level or a restriction in airflow, it immediately triggers localized and systemic alarms to alert operators or safely shut down upstream processes, preventing any unsafe operational states.

3. Application Performance Metrics across Core Industries

The operational performance of the TVC Series varies based on the specific material characteristics of each industrial sector. The system is designed to handle high-temperature and volatile emissions across a diverse range of global manufacturing operations.

The table below outlines the typical dust types, performance expectations, and specific application areas for the TVC Series Explosion-Proof Wet Dust Collector:

4. Service Advantages of Changzhou Thinks Environmental Technology Co., Ltd.

Choosing an industrial air pollution control partner involves evaluating not just the equipment, but also the engineering capabilities and support framework behind it. Changzhou Thinks Environmental Technology Co., Ltd. offers distinct advantages that ensure long-term value and operational security for industrial facilities worldwide.

• Independent Research and Technology Development: Every system supplied by our company is built upon independently developed technologies and high-quality manufacturing standards. This direct control over design and production allows us to tailor systems precisely to complex industrial challenges and provide world-class product technology that matches global compliance frameworks.
• Global Service and Supply Capabilities: We operate with a fully realized global mindset, exporting advanced environmental solutions to North America, Europe, Africa, Southeast Asia, and beyond. Our engineering teams understand the distinct regulatory, environmental, and electrical standards required in different international markets, ensuring smooth deployment and localization.
• Comprehensive Multi-Industry Expertise: Our extensive project portfolio spans diverse and demanding heavy industries, including steel, casting, non-ferrous metals, chemical production, packaging, printing, pharmaceuticals, and emerging new energy sectors. This deep cross-industry experience allows us to anticipate unique application challenges, such as chemical cross-reactions or extreme thermal loads, during the initial engineering phase.
• End-to-End System Integration: We do not simply ship standalone machinery. We act as a comprehensive system supplier, meaning we evaluate the entire air handling process from the point of source collection to final stack discharge. This ensures optimal duct velocity, energy-efficient fan selection, and balanced water-to-air ratios across the entire factory layout.

5. Frequently Asked Questions Regarding Wet Dust Collection

Q1: How does the TVC Series prevent secondary dust dispersion during disposal?

Because the collected dust is mixed thoroughly with the liquid medium to form a heavy sludge, the particles lose their ability to become airborne. When the automated scraper system discharges the material from the groove, it exits as a wet, consolidated cake or slurry. This eliminates the secondary dust clouds commonly generated when emptying dry dust collector hoppers or replacing dry filters.

Q2: Can this system handle high-temperature smoke gases safely?

Yes, the TVC Series is specifically designed for high-temperature applications. The incoming hot gas is drawn directly into the liquid scrubbing zone, where the water acts as a highly efficient direct-contact heat exchanger. This rapidly cools the smoke and gas stream to safe temperatures while simultaneously separating the particulate matter, preventing thermal damage to the equipment.

Q3: What type of daily maintenance is required if there are no filters to change?

Daily maintenance is minimal due to the automated features. Operators primarily need to monitor the automated scraper system to ensure the discharged sludge is cleared from the external collection point and verify that the water supply line is functioning normally. The internal sensors automate liquid level management, reducing manual daily checks to a simple visual review of the control panel.

Q4: Is water consumption high for the TVC Series Wet Dust Collector?

Water consumption is carefully optimized. The system operates on a recirculating principle within the main tank, reusing the liquid to capture incoming dust. Water loss occurs mainly through natural evaporation from hot gas streams and the moisture retained in the discharged sludge cake. The automated control system introduces small amounts of freshwater only as needed to replace these natural losses and maintain the correct operating level.

Q5: Why is a wet dust collector preferred over a dry explosion-proof system for metal grinding?

Metallic dusts like aluminum or titanium are highly reactive and can explode with immense force if ignited in a dry environment. Dry explosion-proof systems require expensive explosion venting, isolation valves, and suppression chemicals, and they still carry the risk of fire within the dry filter housing. A wet dust collector eliminates the hazard at the source by instantly wetting and cooling the metal particles, preventing the physical conditions required for an ignition to occur.
