TF Dust Collector

1. Introduction to Modern Industrial Air Pollution Control

In the modern industrial landscape, maintaining clean air and managing particulate matter is no longer just a regulatory requirement; it is a core pillar of operational efficiency, workplace safety, and environmental stewardship. Industrial processes across sectors like casting, metallurgy, chemical manufacturing, and new energy production generate significant amounts of airborne contaminants. If left unmanaged, these particulates can damage machinery, pose severe health risks to workers, and result in heavy regulatory penalties.

To combat these challenges, companies require highly sophisticated, reliable, and energy-efficient filtration systems. As a premier system supplier specializing in industrial air pollution control, Changzhou Thinks Environmental Technology Co., Ltd. delivers world-class product technology and engineered solutions globally. By leveraging advanced aerodynamic designs and innovative filtration mechanics, modern dust collection systems ensure that industries can maintain high productivity while meeting stringent global emission standards.

2. Deep Dive into the TF Dust Collector Design Principles

The TF Dust Collector engineered by Changzhou Thinks Environmental Technology Co., Ltd. represents a significant advancement in industrial filtration technology. To understand its high efficiency, it is essential to explore the core engineering principles that drive its performance.

2.1 The Downflow Principle and Aerodynamic Advantages

Traditional dust collectors often introduce dusty air from the bottom, forcing the air to move upward against the gravity-driven fall of collected dust. This counter-current flow can cause re-entrainment, where finer dust particles are swept back up onto the filter media during the cleaning cycle.

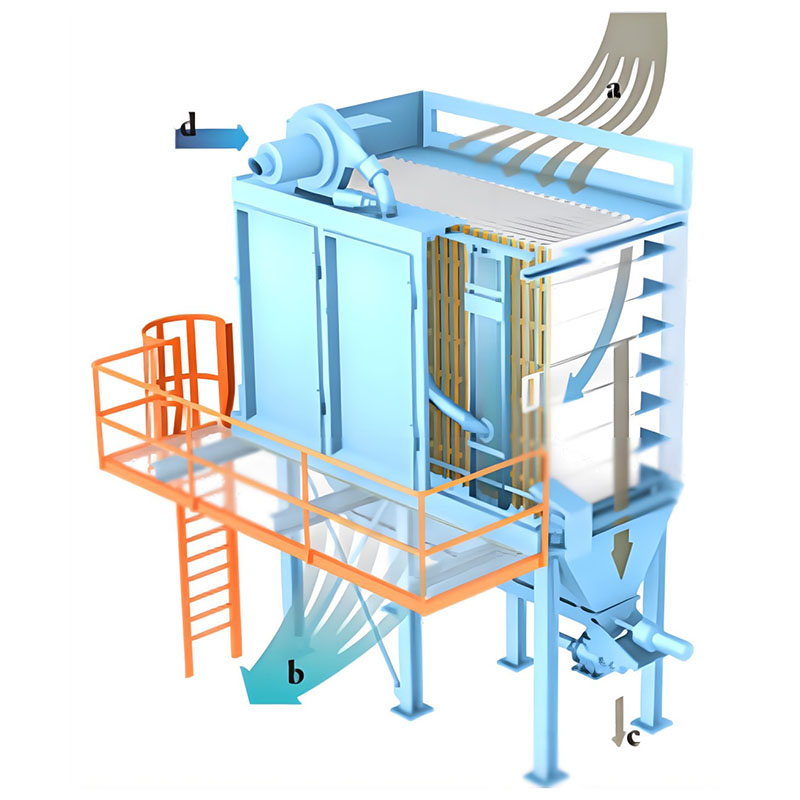

The TF Dust Collector utilizes a downflow design principle. In this configuration, the dirty air inlet is positioned at the upper section of the housing. The air stream moves downward through the filter elements, aligned with the natural pull of gravity.

• Reduced Re-entrainment: When the filter elements are cleaned, the dislodged dust travels in the same direction as the airflow, dropping directly into the collection hopper.
• Lower Pressure Drop: Because the air pressure assists the dust in moving downward, the overall resistance across the system is minimized, leading to more stable operating pressures.
• Extended Filter Life: Less dust accumulation on the media surface reduces mechanical stress and abrasion over time.

2.2 Side-Insert Flat Bag Filter Technology

The filtration media configuration is critical to maximizing surface area within a limited structural footprint. The TF Dust Collector incorporates a side-insert flat bag filter design.

Unlike traditional cylindrical filter bags that require top-access maintenance and substantial vertical clearance, flat bags are arranged horizontally or vertically and accessed from the side doors of the unit. The flat envelope shape provides a high surface-area-to-volume ratio, allowing the system to handle massive volumes of air while keeping the physical size of the equipment remarkably compact.

3. Advanced Offline Reverse Air Fan Cleaning System

One of the most distinctive features of the TF Dust Collector by Changzhou Thinks Environmental Technology Co., Ltd. is its offline reverse air fan cleaning mechanism. Many standard dust collectors use online pulse-jet cleaning, which fires compressed air into the filters while the system is actively filtering air. This can cause brief pressure spikes and push fine dust through the filter media.

3.1 The Mechanism of the Movable Car and Cleaning Nozzle

The TF Dust Collector isolates a specific module or section of filters from the main airflow before initiating the cleaning process, hence the term offline cleaning. The mechanism operates through a highly precise automation system:

1. Isolation: The airflow to a designated filtration chamber is temporarily closed off.
2. Positioning: A specialized movable car equipped with dedicated cleaning nozzles travels along the filter matrix.
3. Reverse Air Injection: Instead of relying on expensive, high-pressure compressed air, an integrated reverse air fan blows a controlled, high-velocity stream of clean air in the opposite direction of the normal filtration flow.
4. Dust Release: The reverse airflow gently but thoroughly flexes the flat bag filter, breaking the dust cake and letting it fall into the hopper without any opposing upward velocity.

3.2 Benefits of Reverse Air Fan Offline Cleaning

This engineered cleaning method offers several distinct operational benefits:

• Zero Process Disruption: Because the cleaning is performed module-by-module in an offline state, the overall factory process suffers zero downtime or fluctuation in suction pressure.
• Energy Savings: Reverse air fans consume significantly less energy compared to heavy-duty air compressors required for standard pulse-jet systems.
• Gentle Media Treatment: The continuous, controlled flow of reverse air reduces the harsh mechanical shock experienced by filter bags, dramatically extending their operational lifespan.

4. Technical Specifications and Application Matrix

The TF Dust Collector is built using a modular design architecture. This allows Changzhou Thinks Environmental Technology Co., Ltd. to scale the system precisely to match the air capacity and structural footprint requirements of various industrial facilities. The system is highly recommended for large-scale operations requiring air capacities ranging from 30,000 to 500,000 cubic meters per hour.

The following table provides a detailed overview of how the TF Dust Collector adapts to different industrial environments and dust types.

5. Our Service Advantages

When partnering with Changzhou Thinks Environmental Technology Co., Ltd., customers receive more than just premium hardware. We deliver a complete ecosystem of technical support and assurance designed to optimize long-term environmental compliance and operational efficiency.

5.1 System Supplier Expertise

We do not merely sell components; we provide integrated, end-to-end industrial air pollution control systems. Our engineering teams analyze your specific production processes, dust characteristics, and space constraints to deliver a fully optimized, turnkey solution.

5.2 Independently Developed High-Quality Products

Our entire product portfolio, including the advanced TF Dust Collector, relies on proprietary designs and independently developed technologies. This internal control over research, development, and manufacturing guarantees exceptional quality control, robust material selection, and world-class product technology.

5.3 Global Service Capabilities

With an established international footprint, our products are exported to North America, Europe, Africa, Southeast Asia, and other major regions. We possess the logistical capabilities, compliance knowledge, and technical support networks required to service global enterprises smoothly, ensuring local environmental standards are met anywhere in the world.

5.4 Low Total Cost of Ownership

By combining a compact modular design that minimizes factory floor footprint with an energy-efficient reverse air fan cleaning system, we help industries drastically reduce their operating energy consumption and filter replacement costs, yielding a rapid return on investment.

6. Frequently Asked Questions

FAQ 1: What makes the downflow design of the TF Dust Collector better than traditional upflow systems?

The downflow design directs the incoming dirty air downward, matching the natural gravity pull on the dust particles. In traditional upflow systems, dust falling during a cleaning cycle fights against the upward-moving air, often settling back onto adjacent filters. The downflow principle ensures that when the flat bags are cleaned, the dust falls directly into the hopper without re-entangling on other filters, keeping the system cleaner and lowering overall operating resistance.

FAQ 2: How does the reverse air fan system save energy compared to pulse-jet cleaning?

Traditional pulse-jet systems rely on compressed air plants, which require high-horsepower compressors that consume large amounts of electricity and demand frequent maintenance. The TF Dust Collector uses a dedicated reverse air fan mounted on a movable cart. This fan utilizes low-pressure, ambient clean air to gently purge the filter module by module, requiring a fraction of the energy consumption used by compressed air systems.

FAQ 3: How difficult is it to replace the filter bags in the TF Dust Collector?

Maintenance is highly efficient and safe due to the side-insert flat bag filter design. Maintenance personnel do not need to climb on top of the unit or enter a confined, dirty air chamber to change the filters. Instead, access doors on the side of the dust collector allow technicians to pull out the flat bags quickly and cleanly horizontally, significantly reducing maintenance downtime and labor costs.

FAQ 4: Can the TF Dust Collector be customized for small-scale operations under 30,000 m³/h?

The TF Dust Collector is optimized and recommended for medium-to-large industrial applications with air capacities ranging from 30,000 to 500,000 cubic meters per hour. Its modular construction is specifically designed to handle high-volume air streams efficiently. For operations significantly below this range, our engineering team at Changzhou Thinks Environmental Technology Co., Ltd. can recommend other tailored filtration systems from our diverse product portfolio.

FAQ 5: What industries benefit most from this specific dust collector model?

Due to its robust offline cleaning system and compact modular structure, the TF Dust Collector is exceptionally well-suited for heavy-duty, high-dust-concentration environments. Its primary application fields include casting, non-ferrous metals, chemical manufacturing, steel production, packaging, printing, pharmaceuticals, and new energy material processing.
