TD Dust Collector

1. Introduction to TD Dust Collector Technology

Industrial air pollution control requires highly efficient, reliable, and space-saving solutions to meet increasingly stringent global environmental standards. Changzhou Thinks Environmental Technology Co., Ltd. addresses these challenges directly with the TD Dust Collector. This advanced system is engineered based on the downflow principle and integrates a side-insert flat bag filter design with a flexible online compressed-air pulse cleaning system.

The TD Dust Collector is specifically optimized for industrial applications where dust exhibits good flowability. By combining thick dust cake filtration principles with a highly adaptable modular structure, this equipment ensures ultra-low emissions, stable differential pressure, and an exceptionally long filter bag service life. It is an ideal solution for modern industrial plants aiming to balance high filtration performance with operational cost efficiency.

2. Core Technological Features and Operational Principles

2.1 The Downflow Principle

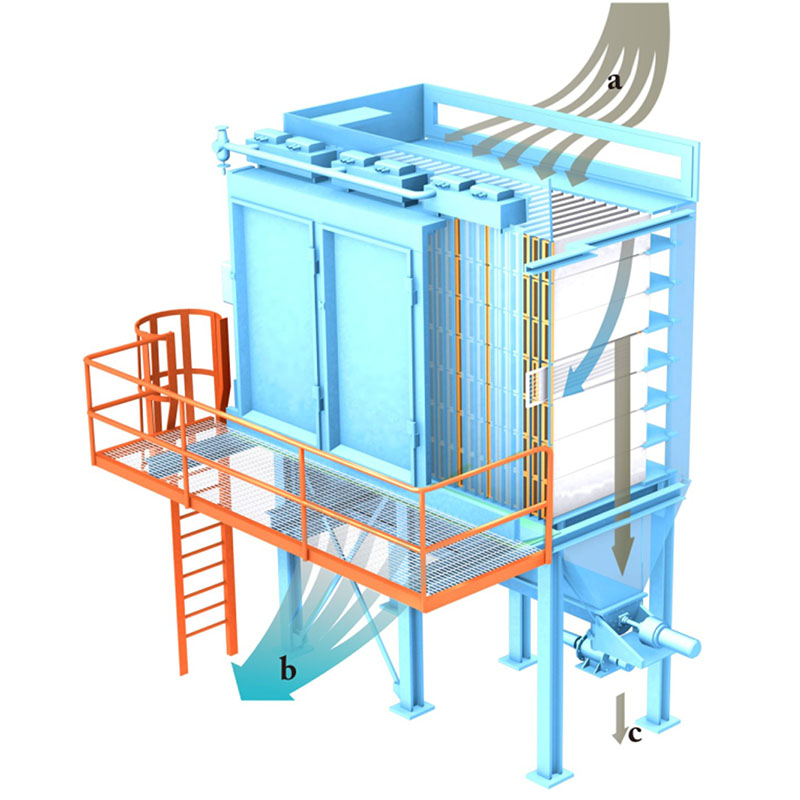

In traditional dust collectors, the upward velocity of incoming air can oppose the gravitational settling of dust particles, causing re-entrainment and premature clogging of the filter media. The TD Dust Collector utilizes a downflow air distribution design. The dust-laden air enters from the upper section of the collector and moves downward in the same direction as gravity. This deliberate airflow pattern assists in the natural settling of heavier dust particles directly into the hopper, significantly reducing the dust load on the filter bags and preventing fine particulate matter from re-settling on the cleaned filter surfaces during the pulse-jet cleaning cycle.

2.2 Side-Insert Flat Bag Design

Unlike traditional top-removal cylindrical bags that require extensive overhead clearance for maintenance, the TD Dust Collector features a side-insert flat bag configuration. The flat bag geometry maximizes the available filtration area within a highly compact structural envelope. The side-access design allows maintenance personnel to inspect and replace filter bags quickly and safely from the side doors of the unit, eliminating the need to enter the clean air chamber or work at dangerous heights on top of the equipment.

2.3 Modular Architecture and Air Capacity Management

To accommodate diverse industrial scales, Changzhou Thinks Environmental Technology Co., Ltd. designs the TD Dust Collector with a modular structural framework. This allows individual units to be standardly manufactured, easily transported, and flexibly combined on-site. The system is highly recommended for operations requiring an air handling capacity ranging from 8000 to 40000 cubic meters per hour. This scalability ensures that facilities can expand their air pollution control systems seamlessly as their production capacities grow.

3. Industrial Application Sectors and Performance Metrics

The unique combination of flat bag technology and downflow aerodynamics makes the TD Dust Collector highly versatile across multiple demanding sectors. The table below outlines how the system performs across key target industries.

4. Thick Dust Cake Filtration and Pulse Cleaning Mechanics

4.1 The Mechanism of Thick Dust Cake Filtration

A common misconception in air filtration is that the filter fabric itself does the majority of the particle capture. In reality, the true filtration medium is the accumulated layer of dust on the surface of the fabric, known as the dust cake. The TD Dust Collector is engineered to utilize thick dust cake filtration. By allowing a controlled, uniform layer of dust to build up on the flat bags, the system achieves an exceptionally high initial and operational filtration efficiency. This dust cake acts as a secondary pre-filter, trapping ultra-fine particles before they can penetrate into the substrate of the filter fabric.

4.2 Flexible Online Compressed-Air Pulse Cleaning

To maintain stable differential pressure without interrupting production, the TD Dust Collector employs a flexible online compressed-air pulse cleaning system. As the dust cake thickens and resistance reaches a preset threshold, a localized pulse of high-pressure compressed air is injected into the clean side of the flat bag. This creates a rapid expansion wave that flexes the fabric, causing the accumulated dust cake to fracture and shed cleanly into the collection hopper below. Because the cleaning occurs online, the remaining rows of bags continue to filter the air, ensuring uninterrupted factory operations.

5. Our Service Advantages

When partnering with Changzhou Thinks Environmental Technology Co., Ltd., clients receive more than just standard hardware. We provide comprehensive, world-class system integration and support tailored to global industrial standards.

• Independent Research and Development: All our primary air pollution control products are developed independently. This guarantees deep engineering insight, rapid customization capabilities, and a continuous pipeline of technological innovations.
• Global Service Capabilities: We maintain a robust global service network, ensuring that regardless of whether your facility is in North America, Europe, Africa, or Southeast Asia, you receive prompt technical support, spare parts availability, and engineering consultation.
• Space-Optimized Engineering: Our proprietary side-insert flat bag systems drastically reduce the overall physical footprint of the equipment. This allows factories with limited real estate to implement high-capacity filtration solutions without costly structural modifications.
• Turnkey Solution Provision: We do not simply sell dust collectors; we act as a complete system supplier. From initial dust characterization and airflow modeling to system design, manufacturing, and international commissioning, we handle the entire project lifecycle.
• Compliance and Sustainability Focus: Our systems are engineered to achieve ultra-low emissions that consistently meet or exceed international environmental regulations, protecting both your workforce and the surrounding community.

6. Frequently Asked Questions

6.1 What is the primary advantage of a side-insert flat bag design compared to traditional round bags?

The side-insert flat bag design significantly reduces the overall height and footprint of the dust collector, making it ideal for facilities with restricted space. Additionally, it improves maintenance safety and speed, as operators can replace the filter bags easily from the side doors without needing to enter the clean air plenum or work on top of the unit.

6.2 How does the downflow principle improve the efficiency of the TD Dust Collector?

The downflow principle directs the incoming dirty air downward, aligning the airflow with the natural gravitational pull on the dust particles. This helps larger dust particles settle directly into the hopper without contacting the filter bags, minimizes dust re-entrainment during pulse cleaning cycles, and maintains a lower, more stable operating differential pressure.

6.3 What range of air capacity is the TD Dust Collector designed to handle?

The TD Dust Collector is highly modular and flexible, with a recommended air handling capacity ranging from 8000 to 40000 cubic meters per hour, making it highly adaptable for small to large-scale industrial operations.

6.4 Is the pulse cleaning system disruptive to continuous factory operations?

No, the TD Dust Collector utilizes an online compressed-air pulse cleaning system. It cleans specific rows of flat bags sequentially while the remaining rows continue to filter the process air. This ensures continuous, uninterrupted ventilation and dust extraction for your production lines.

6.5 Which specific industries benefit most from the TD Dust Collector?

This system is highly effective for environments handling dust with good flowability. Its main application sectors include casting, non-ferrous metals, the chemical industry, steel manufacturing, packaging, printing, pharmaceuticals, and the rapidly growing new energy materials sector.
